Double Flute end Mill, HSC

0 Review(s)

from 25.33 EURO without VAT

Micrograin solid carbide end mill.
With two flutes and flat bottom.
15 ° upcut spiral.
Shank without clamping surface DIN 6535-HA.

The special feature of this mill is the steep upcut angle. The chips are removed very quickly from the work place. In many cases, this results in extremely high feed rates.

Made in Germany

Quantity Discount: -5% (6 - 15 buc) ;-10% (16 - 25 buc) ;-15% (≥26 buc) ;

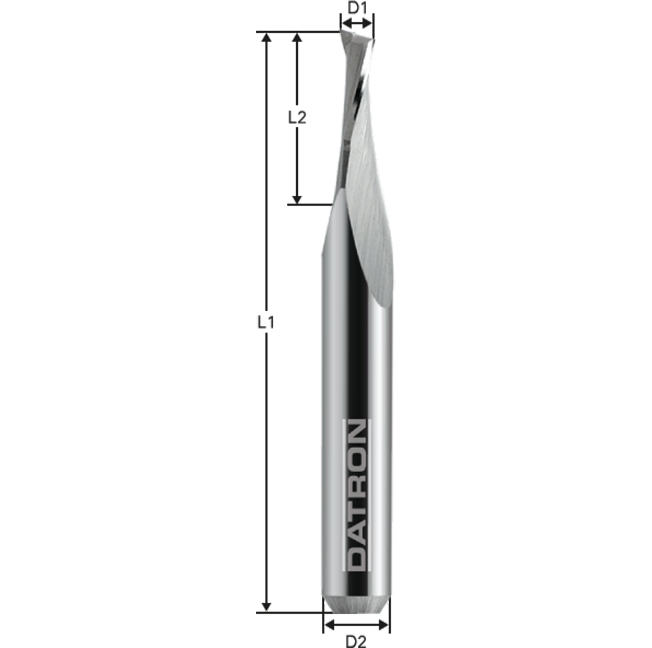

Code	D1	D2	L1	L2	Price without VAT [EURO]	Price without VAT Discount 5% (6-15 buc) [EURO]	Price without VAT Discount 10% (16-25 buc) [EURO]	Price without VAT Discount 15% (≥26 buc) [EURO]

0068815	1.5	3.175	40.0	6.0	25.33	24.06	22.80	21.53
0068815A	1.5	3.0	40.0	6.0	25.33	24.06	22.80	21.53
0068820	2.0	3.175	40.0	6.0	25.33	24.06	22.80	21.53
0068820A	2.0	3.0	40.0	6.0	25.33	24.06	22.80	21.53
0068824	2.4	3.175	40.0	8.0	25.33	24.06	22.80	21.53
0068830	3.0	3.175	40.0	10.0	25.33	24.06	22.80	21.53
0068830A	3.0	3.0	40.0	10.0	25.33	24.06	22.80	21.53
0068830K	3.0	3.175	40.0	6.0	25.33	24.06	22.80	21.53
0068860	6.0	6.0	50.0	12.0	34.56	32.83	31.10	29.38
0068860K	6.0	6.0	50.0	7.0	34.56	32.83	31.10	29.38
0068862	2.0	6.0	50.0	6.0	34.56	32.83	31.10	29.38
0068862K	2.0	6.0	50.0	4.0	34.56	32.83	31.10	29.38
0068863	3.0	6.0	50.0	10.0	34.56	32.83	31.10	29.38
0068863K	3.0	6.0	50.0	6.0	34.56	32.83	31.10	29.38
0068864	4.0	6.0	50.0	8.0	34.56	32.83	31.10	29.38
0068865	5.0	6.0	50.0	10.0	34.56	32.83	31.10	29.38
0068866	1.9	6.0	50.0	6.0	34.56	32.83	31.10	29.38
0068867	2.4	6.0	50.0	5.0	34.56	32.83	31.10	29.38
