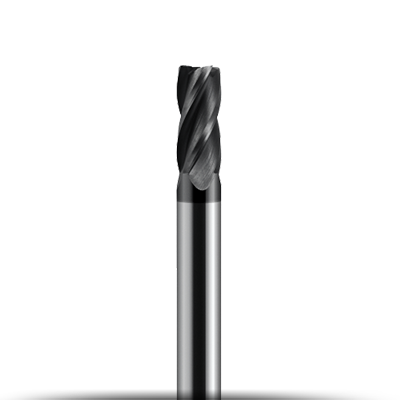

Four flute end mill

0 Review(s)

from 33.72 EURO without VAT

Micrograin solid carbide end mill
With four flutes
30 ° upcut spiral
Shank with clamping surface DIN 6535-HB
Centre cut

This SC end mill has a very short flute length and a special coating, which results in a very long tool life.

Legend
D1 = Flute Diameter, D2= Shank Diameter, D3= Toric Cut, L1= Total Length, L2= Flute Length, L3= Useable Length, α= Angle, R= Radius, W/R, A/R= Angle/Radius, F= number of flutes

* Prices are expressed in EURO and do not include VAT.

Quantity Discount: -5% (6 - 15 buc) ;-10% (16 - 25 buc) ;-15% (≥26 buc) ;

Code	D1	D2	L1	L2	Price without VAT [EURO]	Price without VAT Discount 5% (6-15 buc) [EURO]	Price without VAT Discount 10% (16-25 buc) [EURO]	Price without VAT Discount 15% (≥26 buc) [EURO]

0078402	2.0	6.0	50.0	7.0	33.72	32.03	30.35	28.66
00784025	2.5	6.0	50.0	8.0	33.72	32.03	30.35	28.66
0078403	3.0	6.0	58.0	8.0	33.72	32.03	30.35	28.66
00784035	3.5	6.0	58.0	10.0	33.72	32.03	30.35	28.66
0078403A	3.0	6.0	57.0	19.0	42.69	40.56	38.42	36.29
0078404	4.0	6.0	58.0	11.0	33.72	32.03	30.35	28.66
00784045	4.5	6.0	58.0	11.0	33.72	32.03	30.35	28.66
0078404A	4.0	6.0	57.0	19.0	42.69	40.56	38.42	36.29
0078404B	4.0	6.0	75.0	25.0	47.16	44.80	42.44	40.09
0078405	5.0	6.0	58.0	13.0	33.72	32.03	30.35	28.66
00784055	5.5	6.0	58.0	13.0	33.72	32.03	30.35	28.66
0078405A	5.0	6.0	75.0	30.0	47.16	44.80	42.44	40.09
0078406	6.0	6.0	58.0	13.0	33.72	32.03	30.35	28.66
00784065	6.5	8.0	63.0	16.0	45.63	43.35	41.07	38.79
0078406A	6.0	6.0	75.0	30.0	47.16	44.80	42.44	40.09
0078406B	6.0	6.0	100.0	40.0	50.24	47.73	45.22	42.70
0078407	7.0	8.0	63.0	16.0	45.63	43.35	41.07	38.79
0078408	8.0	8.0	63.0	18.0	45.63	43.35	41.07	38.79
0078408A	8.0	8.0	75.0	30.0	53.06	50.41	47.75	45.10
0078409	9.0	10.0	72.0	19.0	60.31	57.29	54.28	51.26
0078410	10.0	10.0	72.0	22.0	60.31	57.29	54.28	51.26
0078410A	10.0	10.0	75.0	30.0	70.67	67.14	63.60	60.07
0078410B	10.0	10.0	100.0	40.0	85.36	81.09	76.82	72.56
0078412	12.0	12.0	83.0	26.0	79.50	75.53	71.55	67.58
0078412A	12.0	12.0	100.0	45.0	105.95	100.65	95.36	90.06
0078414	14.0	14.0	83.0	26.0	91.39	86.82	82.25	77.68
0078414A	14.0	14.0	100.0	45.0	133.46	126.79	120.11	113.44
0078416	16.0	16.0	92.0	32.0	107.95	102.55	97.16	91.76
0078416A	16.0	16.0	100.0	45.0	163.92	155.72	147.53	139.33
0078418	18.0	18.0	92.0	32.0	133.46	126.79	120.11	113.44
0078418A	18.0	18.0	100.0	45.0	202.00	191.90	181.80	171.70
0078420A	20.0	20.0	100.0	45.0	243.97	231.77	219.57	207.37
0078420B	20.0	20.0	150.0	65.0	303.67	288.49	273.30	258.12
