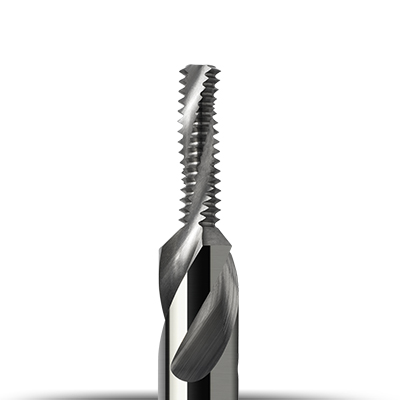

Multi Thread Mill

0 Review(s)

from 163.34 EURO without VAT

Micrograin solid carbide special-purpose mill for the milling of threads.
Shank without clamping surface DIN 6535-HA.
With 45 degrees countersink section.

The multi-toothing of this tool allows a complete thread cut within one helix. This way, threads can be produced in an optimum amount of time and extremely efficiently.
The integrated 45 degrees countersink chamfer is for automatic deburring.

Legend
D1 = Flute Diameter, D2= Shank Diameter, D3= Toric Cut, L1= Total Length, L2= Flute Length, L3= Useable Length, α= Angle, R= Radius, W/R, A/R= Angle/Radius, F= number of flutes

* Prices are expressed in EURO and do not include VAT.

Quantity Discount: -5% (6 - 15 buc) ;-10% (16 - 25 buc) ;-15% (≥26 buc) ;

Code	D1	D2	L1	L2	Unghi	Filet	Price without VAT [EURO]	Price without VAT Discount 5% (6-15 buc) [EURO]	Price without VAT Discount 10% (16-25 buc) [EURO]	Price without VAT Discount 15% (≥26 buc) [EURO]

00684503	2.3	6.0	50.0	8.0	60	M3	163.34	155.17	147.01	138.84
00684504	3.0	6.0	50.0	8.0	60	M4	163.34	155.17	147.01	138.84
00684505	3.8	6.0	50.0	12.0	60	M5	169.19	160.73	152.27	143.81
00684506	4.5	8.0	50.0	12.0	60	M6	173.66	164.98	156.29	147.61
00684508	6.0	10.0	50.0	12.0	60	M8	183.91	174.71	165.52	156.32
00684544	3.0	6.0	50.0	12.0	60	M4	169.19	160.73	152.27	143.81
00684555	3.8	6.0	50.0	16.0	60	M5	172.83	164.19	155.55	146.91
00684566	4.5	8.0	50.0	16.0	60	M6	178.01	169.11	160.21	151.31
00684588	6.0	10.0	50.0	16.0	60	M8	198.58	188.65	178.72	168.79
