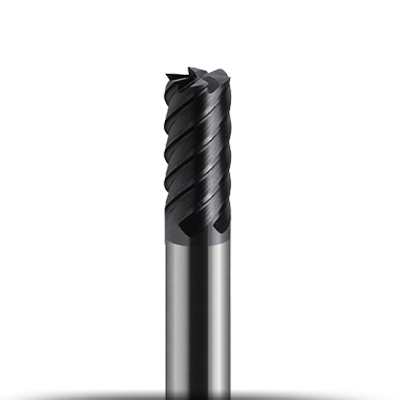

Six flute end mill

from 26.88 EURO without VAT

Micrograin solid carbide end mill
With six flutes
50 ° upcut spiral
Radial under cut
Shank without clamping surface DIN 6535-HA
Without centre cut
Partly with edge radius

This end mill has a very short flute length and a special coating, which results in a very long tool life.

Legend
D1 = Flute Diameter, D2= Shank Diameter, D3= Toric Cut, L1= Total Length, L2= Flute Length, L3= Useable Length, α= Angle, R= Radius, W/R, A/R= Angle/Radius, F= number of flutes

* Prices are expressed in EURO and do not include VAT.

Quantity Discount: -5% (6 - 15 buc) ;-10% (16 - 25 buc) ;-15% (≥26 buc) ;

Code	D1	D2	L1	L2	R	Price without VAT [EURO]	Price without VAT Discount 5% (6-15 buc) [EURO]	Price without VAT Discount 10% (16-25 buc) [EURO]	Price without VAT Discount 15% (≥26 buc) [EURO]

0078605	5.0	6.0	57.0	13.0	-	26.88	25.54	24.19	22.85
0078606	6.0	6.0	57.0	13.0	-	26.88	25.54	24.19	22.85
0078606A	6.0	6.0	57.0	13.0	1.0	34.83	33.09	31.35	29.61
0078608	8.0	8.0	63.0	16.0	-	35.91	34.11	32.32	30.52
0078608A	8.0	8.0	63.0	16.0	1.0	44.18	41.97	39.76	37.55
0078610	10.0	10.0	72.0	19.0	-	44.83	42.59	40.35	38.11
0078610A	10.0	10.0	72.0	19.0	1.5	56.65	53.82	50.99	48.15
0078612	12.0	12.0	83.0	22.0	-	62.24	59.13	56.02	52.90
0078612A	12.0	12.0	83.0	22.0	1.5	76.97	73.12	69.27	65.42
0078614	14.0	14.0	83.0	22.0	-	80.30	76.29	72.27	68.26
