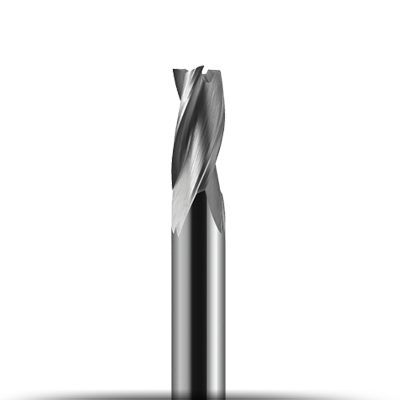

Triple flute end mill, smoothing mill for copper
from 37.64 EURO without VAT
Micrograin solid carbide end mill.
With three flutes and flat bottom.
30 ° upcut spiral.
Shank without clamping surface DIN 6535-HB.
Centre cut with one long flute.
Due to the three flutes with a special clearance angle geometry an extremely good workpiece surface quality is achieved in the finishing process.
Quantity Discount: -5% (6 - 15 buc) ;-10% (16 - 25 buc) ;-15% (≥26 buc) ;
| Code | D1 | D2 | L1 | L2 | Price without VAT [EURO] |
Price without VAT Discount 5% (6-15 buc) [EURO] |
Price without VAT Discount 10% (16-25 buc) [EURO] |
Price without VAT Discount 15% (≥26 buc) [EURO] |
|
|---|---|---|---|---|---|---|---|---|---|
| 00685610 | 1.0 | 6.0 | 50.0 | 2.2 | 37.64 | 35.76 | 33.88 | 31.99 | |
| 00685615 | 1.5 | 6.0 | 50.0 | 3.2 | 37.64 | 35.76 | 33.88 | 31.99 | |
| 00685620 | 2.0 | 6.0 | 50.0 | 4.2 | 37.64 | 35.76 | 33.88 | 31.99 | |
| 00685630 | 3.0 | 6.0 | 50.0 | 6.0 | 37.64 | 35.76 | 33.88 | 31.99 | |
| 00685640 | 4.0 | 6.0 | 50.0 | 8.0 | 37.64 | 35.76 | 33.88 | 31.99 | |
| 00685660 | 6.0 | 6.0 | 50.0 | 11.0 | 37.64 | 35.76 | 33.88 | 31.99 | |
| 00685680 | 8.0 | 8.0 | 50.0 | 16.0 | 51.50 | 48.93 | 46.35 | 43.78 |
